OBJECT: To Determine The Compressive Strength Of Concrete Sample By Schmidt Hammer (Rebound Hammer)
STANDARDS:
IS: 13311(2)-1992
THOERY:
Rebound Hammer test is a Non-destructive testing method of concrete which provide a convenient and rapid indication of the compressive strength of the concrete. The rebound hammer is also called as Schmidt hammer that consist of a spring controlled mass that slides on a plunger within a tubular housing.

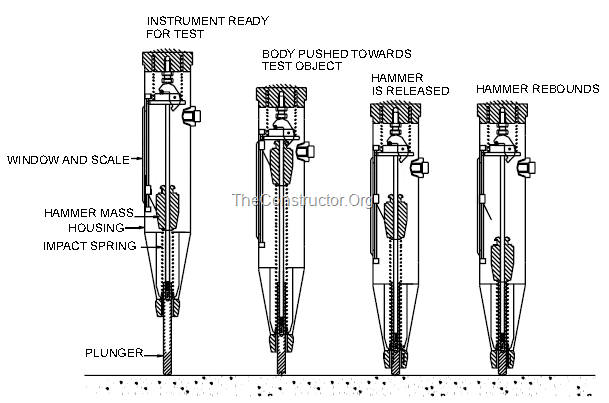

The operation of rebound hammer is shown in the fig.1. When the plunger of rebound hammer is pressed against the surface of concrete, a spring controlled mass with a constant energy is made to hit concrete surface to rebound back. The extent of rebound, which is a measure of surface hardness, is measured on a graduated scale. This measured value is designated as Rebound Number (rebound index). A concrete with low strength and low stiffness will absorb more energy to yield in a lower rebound value.
PRINCIPLE OF REBOUND HAMMER TEST:
Rebound hammer test method is based on the principle that the rebound of an elastic mass depends on the hardness of the concrete surface against which the mass strikes. The operation of the rebound hammer is shown in figure-1. When the plunger of rebound hammer is pressed against the concrete surface, the spring controlled mass in the hammer rebounds. The amount of rebound of the mass depends on the hardness of concrete surface.
Thus, the hardness of concrete and rebound hammer reading can be correlated with compressive strength of concrete. The rebound value is read off along a graduated scale and is designated as the rebound number or rebound index. The compressive strength can be read directly from the graph provided on the body of the hammer.
PROCEDURE FOR REBOUND HAMMER TEST:
Rebound hammer is held at right angles to the surface of the concrete structure for taking the readings. The test thus can be conducted horizontally on vertical surface and vertically upwards or downwards on horizontal surfaces as shown in figure below.
If the rebound hammer is held at intermediate angle, the rebound number will be different for the same concrete.
